Batteries & Runtime
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Extended runtime | 20-30 Min |
| Number of battery filled slots | |
| Number of battery free slots | 0 |
| Cell Chemistry LFP |
| Calculated Load in kW : 1.0 |
| Maximum Charging Voltage(V) : 54 |
| End Cell Voltage(V) : 42 |

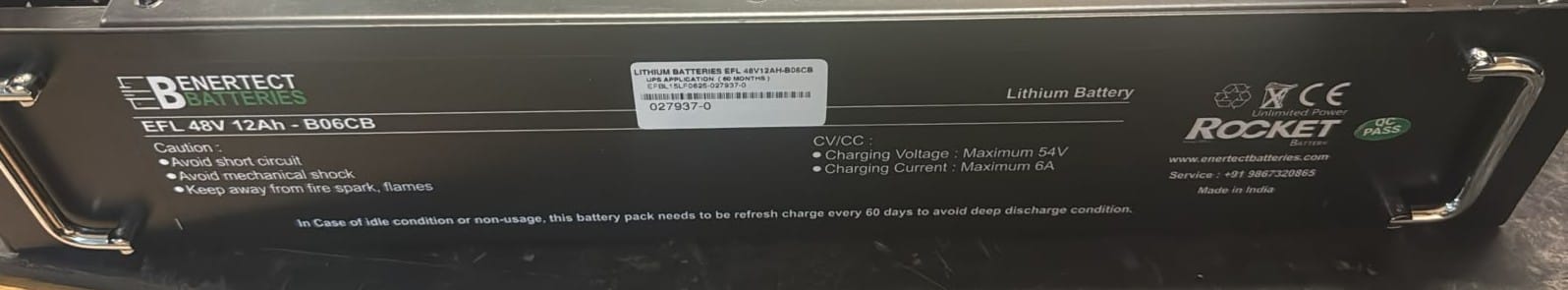

| Offered Battery Configuration : 48V 12AH |
| Minimum Charging Current : 0.1C |
| Maximum Charging Current : 0.5C |
| Energy Required(kWh) : 0.5 |
| Capacity Required (AH) : 11.9 |
| Nearest Available Capacity(AH) : 12 |
| Total Available Energy (kWh) : 0.576 |
| Available Approximate Back Up Time for offered Solution (Min) at BOL : 30 |
| Number of power module | 01 |
|---|---|
| Capacity of the Battery pack | 12AH |
| Redundant | No |
| Variant option | Li-Ion battery compatibility |
| UPS type | Double conversion online |
| Colour | Black |
|---|---|
| Height | 43.2 cm |
| Width | 8.5 cm |
| Depth | 48.3 cm |
| Net weight | 11.48 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Mounting position | Vertical Horizontal |
| Load power factor | 0.8 |
|---|---|
| Input voltage limits | 160…280 V |
| Network frequency | 40…70 Hz auto-sensing |
| Warranty | 2 years repair or replace by estorewale. Please note the warranty start from date of Sale. |
|---|
SKU: LITHIUM ION Battery
Categories: Online UPS, UPS & Stabilizers, UPS Accessories
