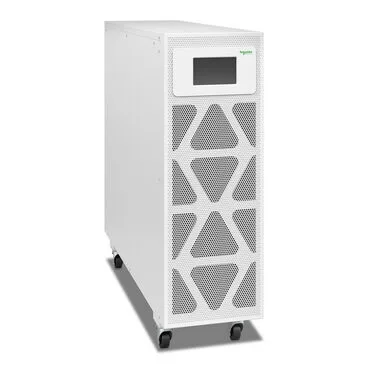

APC E3SP40KHIN is a 40 kVA, 400 V three-phase online double-conversion UPS from the Easy UPS 3S Pro range, built for businesses that need reliable backup power for IT racks, small data centres, manufacturing lines or commercial electrical rooms. It is designed for straightforward installation, monitoring and servicing, making it a practical choice for buyers who want dependable three-phase protection without a complex setup process.
APC E3SP40KHIN key specifications
- Rated output of 40 kVA / 40 kW, supplied for 3:3 (three-phase in, three-phase out) configuration
- Three-phase input and output at 380/400/415 V, with input frequency tolerance of 40-70 Hz
- Double-conversion efficiency above 96%, rising to as much as 99% in ECO mode
- Overload handling of 110% for 60 minutes, 125% for 10 minutes and 150% for 1 minute
- 5-inch touch LCD control panel with Modbus (RS-485), USB and TCP/IP (NMC AP9547) communication for remote monitoring
- VRLA battery support at a nominal 480 V battery bus, with IP20 protection class
This UPS suits small and medium data centres and computer rooms, manufacturing facilities, telecommunications sites, commercial buildings, healthcare premises and transportation infrastructure where three-phase mains supply needs to be backed up for IT loads, control systems or other mission-critical equipment. The unit’s compact footprint and front, side and rear service access make it a fit for electrical rooms where floor space and maintenance access are both limited.
The APC E3SP40KHIN is supplied as a floor-standing unit with Unit Input Breaker, Unit Output Breaker, Static Switch Input Breaker and Maintenance Bypass Breaker already fitted, along with a built-in Network Management Card for remote monitoring. It is intended for installation by a qualified electrician or Schneider Electric-certified services representative, with an optional on-site start-up service available. Batteries and battery cabinets are selected separately according to the runtime and configuration required.
APC E3SP40KHIN technical specifications
| Rated Power | 40 kVA / 40 kW |
|---|---|
| Input Voltage | 380/400/415 V |
| Input Frequency | 40-70 Hz |
| Input Power Factor | >0.99 at load higher than 75% |
| Output Voltage | 380/400/415 V |
| Efficiency Double Conversion | Above 96% |
| Efficiency ECO Mode | Up to 99% |
| Overload Capacity | 110% for 60 min, 125% for 10 min, 150% for 1 min |
| Output Voltage Regulation | ±1% for symmetrical load |
| Communication Interface | Modbus (RS-485), USB, TCP/IP (NMC AP9547) |
| Control Panel | 5-inch touchable LCD |
| Battery Type | VRLA |
| Nominal Battery Voltage | 480 V |
| Protection Class | IP20 |
